TT 101
PDF E-mail
TT101_1_640 Video Twisted-Pair Transmitter
24Vac/dc, power supply and output over-voltage protection, low power consumption, dual output impedance, pre-emphasis +10dB/5MHz, ABS casing with IP-65 protection, max. distance 1.600 m.

operating_instructions_hover




TTP 101
PDF E-mail
TTP101_1_640 Video Twisted-Pair Transmitter
230Vac, power supply and output over-voltage protection, dual output impedance, pre-emphasis +10dB/5MHz, ABS casing with IP-65 protection, max. distance 1.600 m.

operating_instructions_hover




TT 404
PDF E-mail
TT404_1_640 Video Twisted-Pair Transmitter
4-channel, 12Vdc, power supply and output over-voltage protection, low power consumption, pre-emphasis +10dB/5MHz, rack mountable using optional rack mount kit TRA and TRK series, max. distance 1.600 m.


TT 404P
100-240Vac, with built-in switching power supply unit.

operating_instructions_hover




TT 808
PDF E-mail
TT808_1_640 Video Twisted-Pair Transmitter
8-channel, 12Vdc, power supply and output over-voltage protection, low power consumption, pre-emphasis +10dB/5MHz, rack mountable using optional rack mount kit TRA and TRK series, max. distance 1.600 m.

TT 808P
100-240Vac, with built-in switching power supply unit.

operating_instructions_hover




TT 1616
PDF E-mail

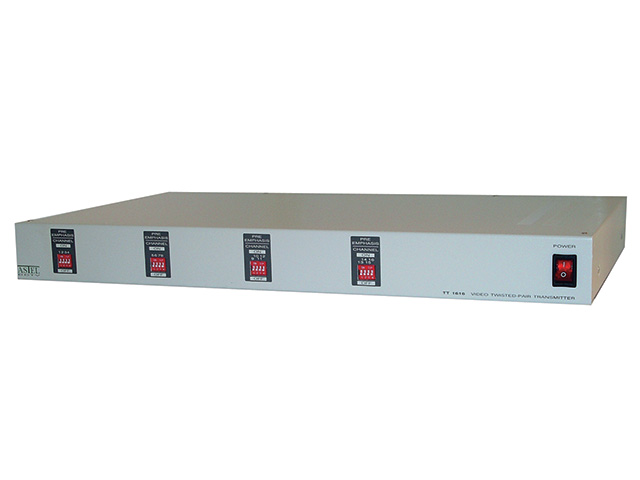

TT1616_1_640 Video Twisted-Pair Transmitter
16-channel, 12Vdc, power supply and output over-voltage protection, low power consumption, pre-emphasis +10dB/5MHz, Rack, mountable using optional rack mount kit TRA and TRK series, max. distance 1.600 m.

TT 1616P
100-240Vac, with built-in switching power supply unit.

operating_instructions_hover




TTR 101
PDF E-mail

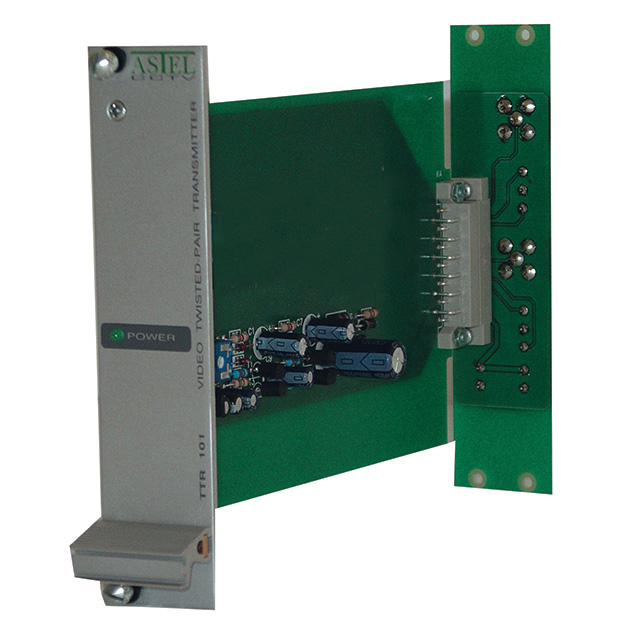

TTR101_1_640 Video Twisted-Pair Transmitter
12Vdc, 19"/3U rack mountable, small dimensions 3U/6TE, power supply and output over-voltage protection, low power consumption, pre-emphasis +10dB/5MHz, max. distance 1.600 m.

operating_instructions_hover




TTR 202
PDF E-mail
TTR202_1_640 Video Twisted-Pair Transmitter
2-channel, 12Vdc, 19"/3U rack mountable, small dimensions 3U/6TE, power supply and output over-voltage protection, low powerconsumption, pre-emphasis +10dB/5MHz, max. distance 1.600 m.

operating_instructions_hover




TTM 101
PDF E-mail
TTM101_1_640 Video Twisted-Pair Transmitter
12-24Vac/dc, very small dimensions, very low power consumption, power supply and output over-voltage protection, simple installation, dual output impedance, pre-emphasis +10dB/5MHz, max. distance 1.800 m.

operating_instructions_hover




TTM 101C
PDF E-mail
TTM101C_1_640 Video Twisted-Pair Transmitter
12-24Vac/dc, with BNC and 0.5 m cable, very small dimensions, very low power consumption, power supply and output overvoltage protection, simple installation, dual output impedance, pre-emphasis +10dB/5MHz, max. distance 1.800 m

operating_instructions_hover




TR 101
PDF E-mail
TR101_1_640 Video Twisted-Pair Receiver
24Vac/dc, power supply and input over-voltage protection, low power consumption, disturbance reduction, power-on and video signal error LED indication, input impedance adjustment, max. +60dB gain adjustment at 5MHz, ABS casing with IP-65 protection, max. distance 1.800 m.

operating_instructions_hover




TRP 101
PDF E-mail
TRP101_1_640 Video Twisted-Pair Receiver
230Vac, power supply and input over-voltage protection, disturbance reduction, power-on and video signal error LED indication, input impedance adjustment, max. +60dB gain adjustment at 5MHz, ABS casing with IP-65 protection, max. distance 1.800 m.

operating_instructions_hover




TR 404L
PDF E-mail
TR404L_1_640 Video Twisted-Pair Receiver
4-channel, 12Vdc, power supply and input over-voltage protection, disturbance reduction, power-on and video signal error LED indication, simple installation, linear, middle and high frequency gain adjustment at 5MHz., rack mountable using optional rack mount kit TRA and TRK series, max. distance 1.500 m.

TR 404LP
100-240Vac, with built-in switching power supply unit.

operating_instructions_hover




TR 808L
PDF E-mail
TR808L_1_640 Video Twisted-Pair Receiver
8-channel, 12Vdc, power supply and input over-voltage protection, disturbance reduction, power-on and video signal error LED indication, simple installation, linear, middle and high frequency gain adjustment at 5MHz., rack mountable using optional rack mount kit TRA and TRK series, max. distance 1.500 m.

TR 808LP
100-240Vac, with built-in switching power supply unit.

operating_instructions_hover




TR 1616L
PDF E-mail
TR1616L_1_640 Video Twisted-Pair Receiver
16-channel, 12Vdc, power supply and input over-voltage protection, disturbance reduction, power-on and video signal error LED indication, simple installation, linear, middle and high frequency gain adjustment at 5MHz., rack mountable using optional rack mount kit TRA and TRK series, max. distance 1.500 m.

TR 1616LP
100-240Vac, with built-in switching power supply unit.

operating_instructions_hover




TRR 101
PDF E-mail

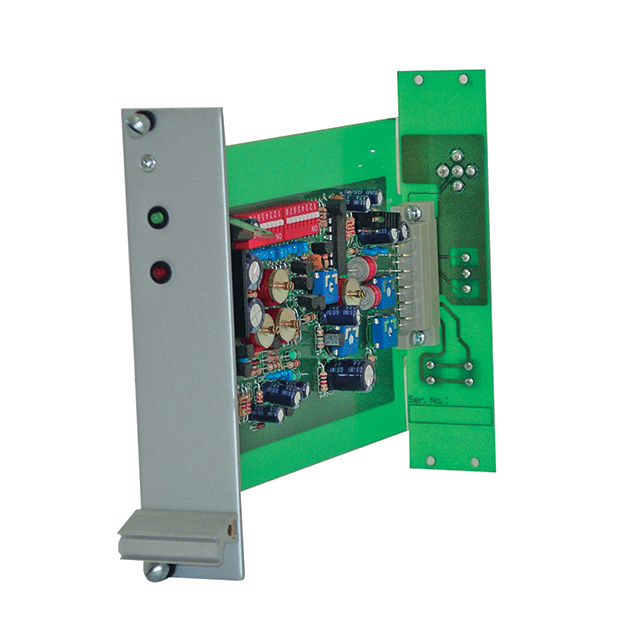

TRR101_1_640 Video Twisted-Pair Receiver
24Vac/dc, 19"/3U rack mountable, small dimensions 3U/6TE, power supply and input over-voltage protection, low power consumption, disturbance reduction, power-on and video signal error LED indication, input impedance adjustment, max. +60dB gain adjustment at 5MHz, max. distance 1.800 m.

TR 101E
For 12Vdc power supply.

operating_instructions_hover




TRR 101L
PDF E-mail
TRR101L_1_640 Video Twisted-Pair Receiver
12Vdc, 19"/3U rack mountable, small dimensions 3U/6TE, power supply and input over-voltage protection, low power consumption, disturbance reduction, power-on and video signal error LED indication, simple installation, linear, middle and high frequency gain adjustment at 5MHz, max. distance 1.500 m.




TRR 202L
PDF E-mail
TRR202L_1_640 Video Twisted-Pair Receiver
2-channel, 12Vdc, 19"/3U rack mountable, small dimensions 3U/6TE, power supply and input over-voltage protection, low power consumption, disturbance reduction, power-on and video signal error LED indication, simple installation, linear, middle and high frequency gain adjustment at 5MHz, max. distance 1.500 m.




TRM 101
PDF E-mail
TRM101_1_640 Video Twisted-Pair Receiver
12-24Vac/dc, very small dimensions, very low power consumption, power supply and intput over-voltage protection, simple installation, max. +18dB gain adjustment at 5MHz, max. distance 900 m.

operating_instructions_hover




TRM 101C
PDF E-mail
TRM101C_1_640 Video Twisted-Pair Receiver
12-24Vac/dc, with BNC and 0.5 m cable, very small dimensions, very low power consumption, power supply and input overvoltage protection, simple installation, max. +18dB gain adjustment at 5MHz, max. distance 900 m.

operating_instructions_hover




TPS 24
PDF E-mail

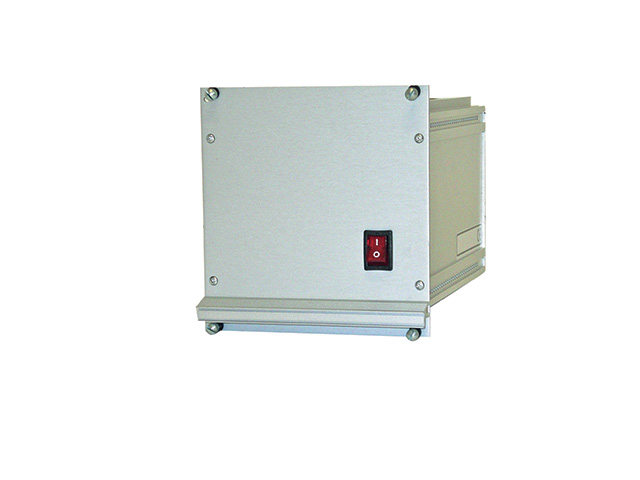

TPS24_1_640 Power Supply Unit
230Vac, 19"/3U rack mountable, standard dimensions 3U/24TE, 24Vac output for power supplying of max. 10 x TRR 101.

operating_instructions_hover




TPS 12R
PDF E-mail
TPS12R_1_640 Power Supply Unit
100-240Vac, 19"/3U rack mountable, standard dimensions 3U/12TE, 12Vdc output for power supplying of max. 12 x TTR 101, TTR 202, TRR 101E, TRR 101L. or TRR 202L.

operating_instructions_hover




TE 01
PDF E-mail
TE01_1_640 Extension Board
Enables all adjustments on Video Twisted-Pair Receiver TRR 101 during installation.

operating_instructions_hover




TRC 384
PDF E-mail
TRC384_1_640 Kit Rack
Standard 19"/3U dimensions, suitable for max. 10 x TRR 101 with 1 x TPS 24 or 12 x TTR 101, TTR 202, TRR 101E, TRR 101L, TRR 202L with 1 x TPS 12R.

operating_instructions_hover




TRB 6
PDF E-mail
TRB6_1_640 19" Rack Blank Panel
Standard 19"/3U/6TE dimensions, to cover empty places in TRC 384.




TRB 12
PDF E-mail
TRB12_1_640 19" Rack Blank Panel
Standard 19"/3U/12TE dimensions, to cover empty places in TRC 384.




TRB 24
PDF E-mail
TRB24_1_640 19" Rack Blank Panel
Standard 19"/3U/24TE dimensions, to cover empty places in TRC 384.
